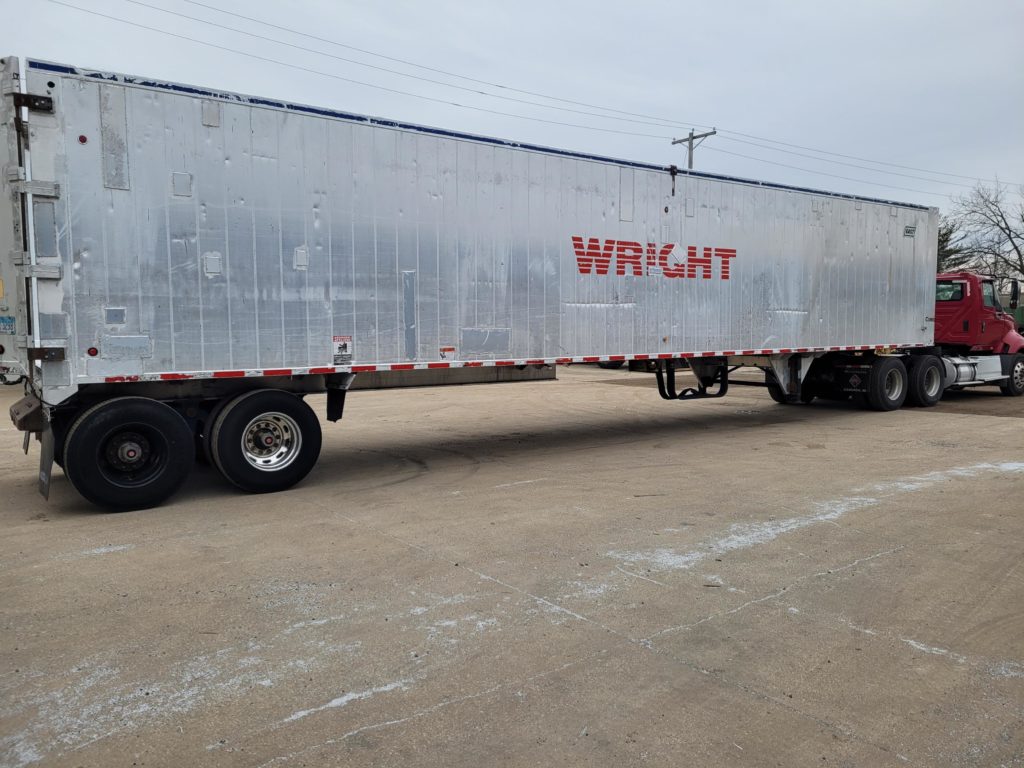

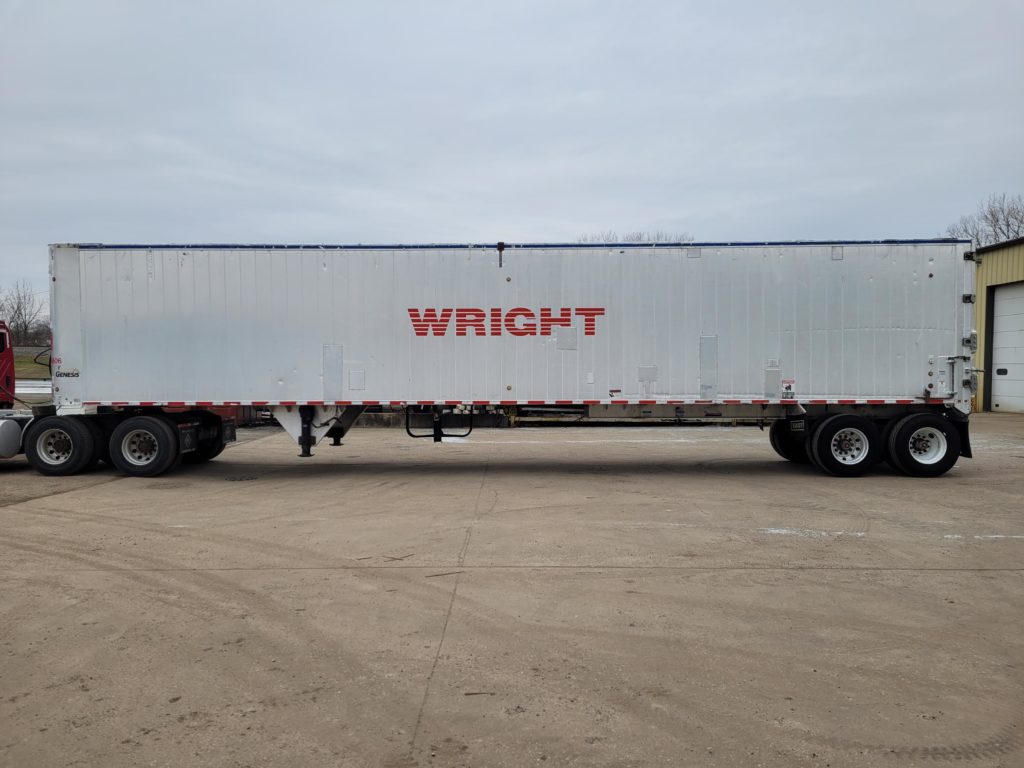

2007 EAST 50′ GENESIS WALKING FLOOR TRAILER
BODY
Length: 50’
Width: 102”
Height: 100”

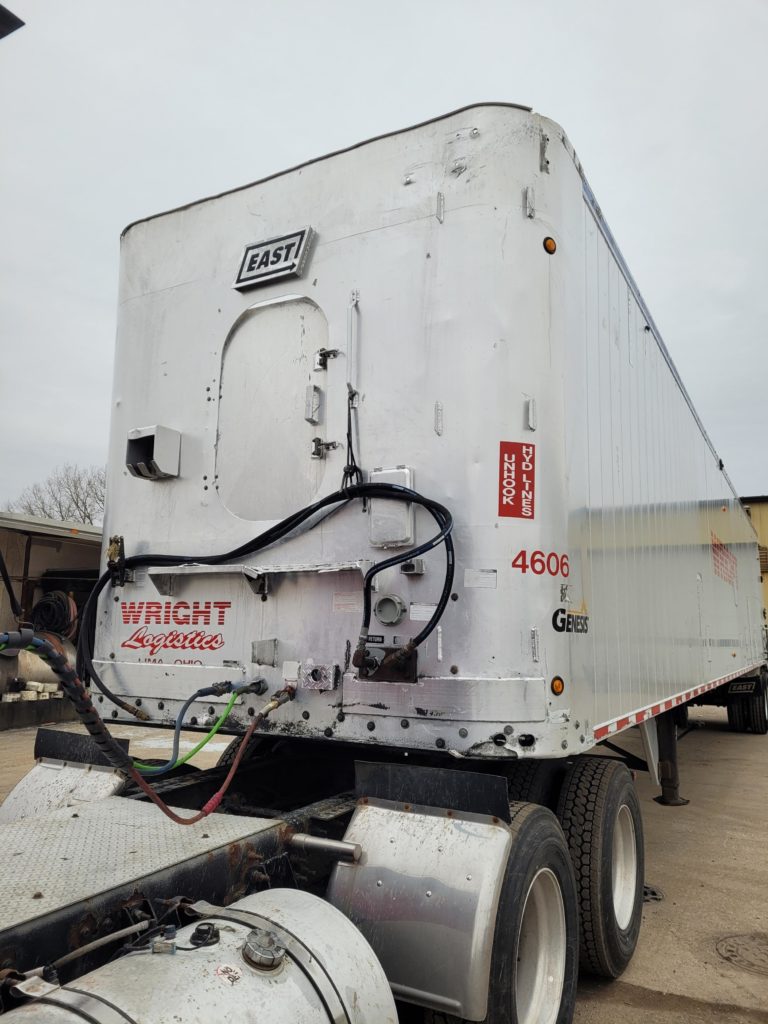

Bulkhead: 3/16” – Mandoor

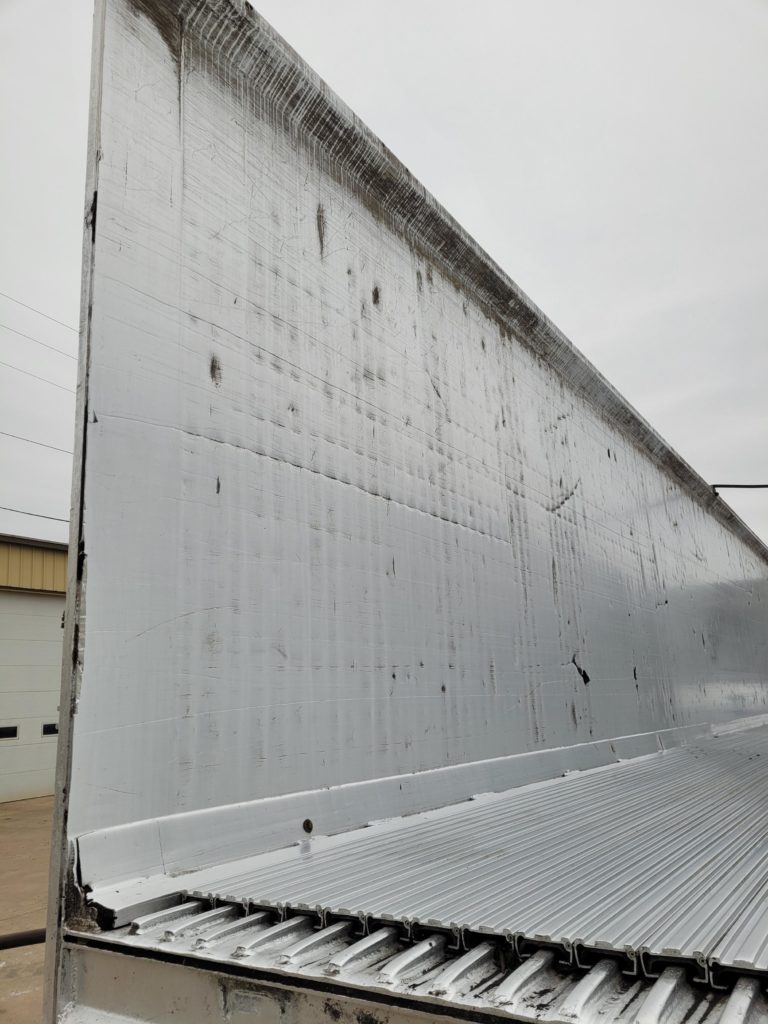

Side Material: Genesis Front – 0.150 Middle – 0.150 Rear – 0.150
Catwalk: None
B.H. Ladder: Rung – Drivers side
Crossmember: “I” Beam – 12” C/L

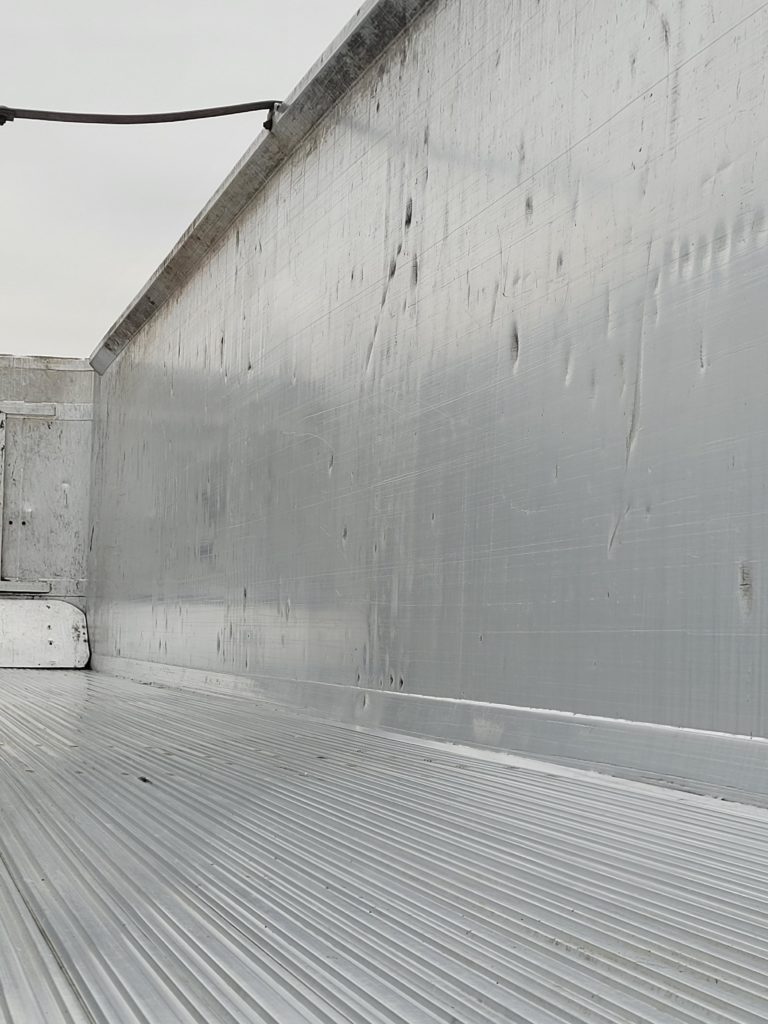

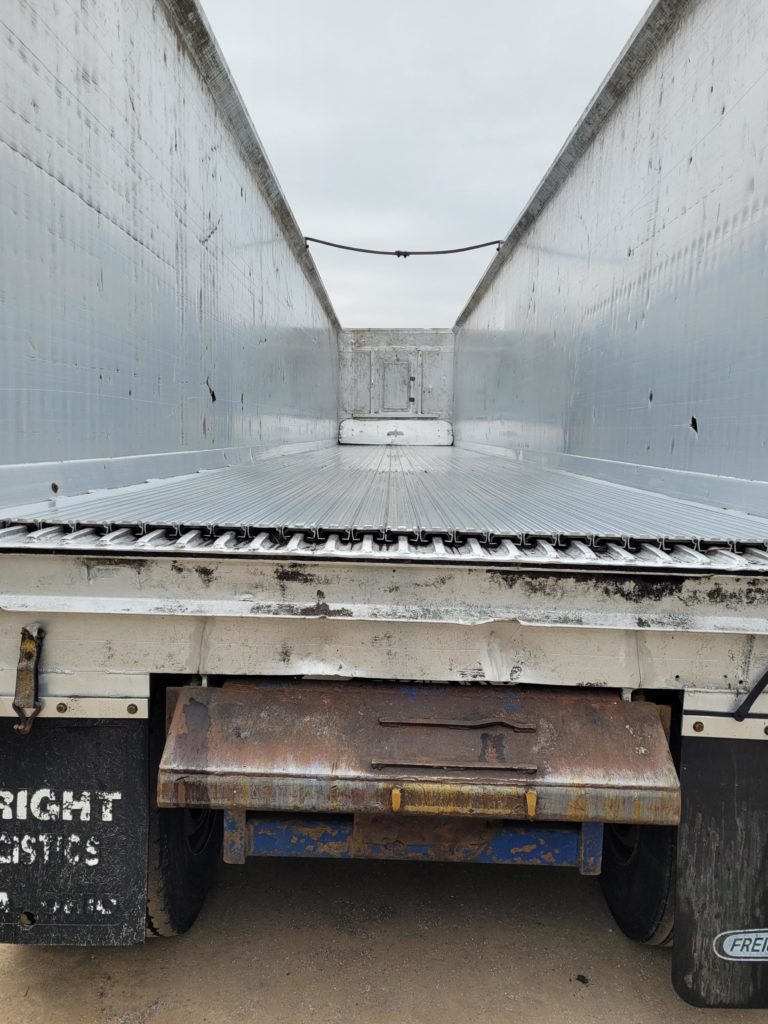

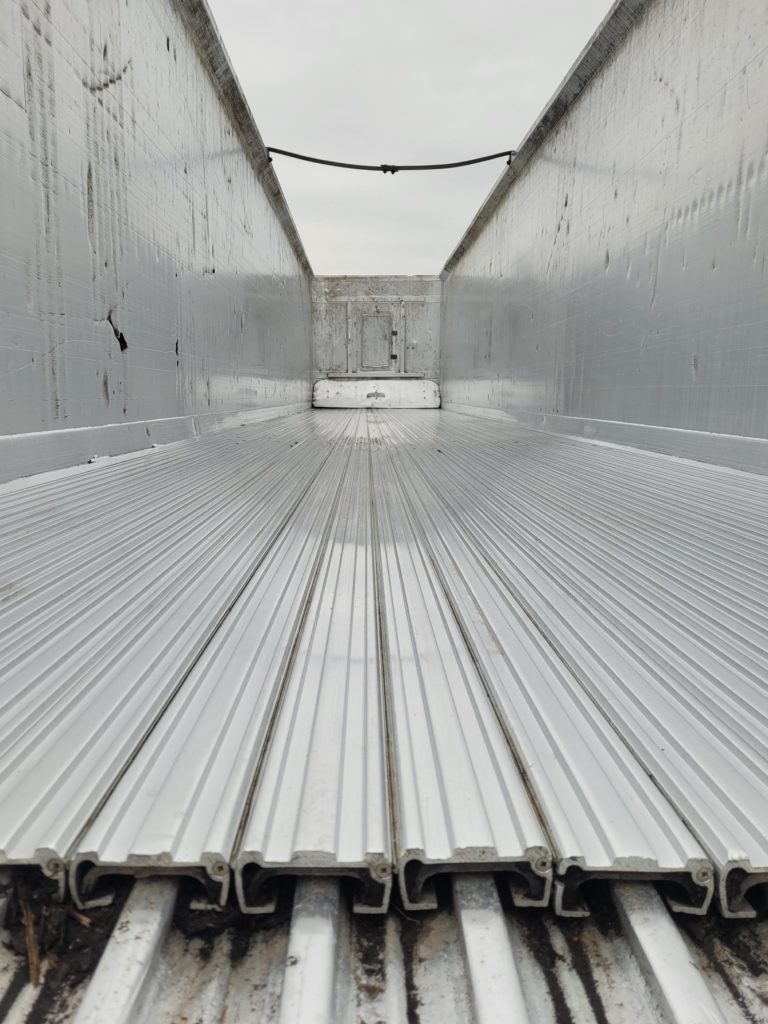

Floor Make: Keith
Floor Material: 2299 W/Sloped
Wear Pads: Cleanout
Hose Hanger: Yes
Tire Carrier: Yes

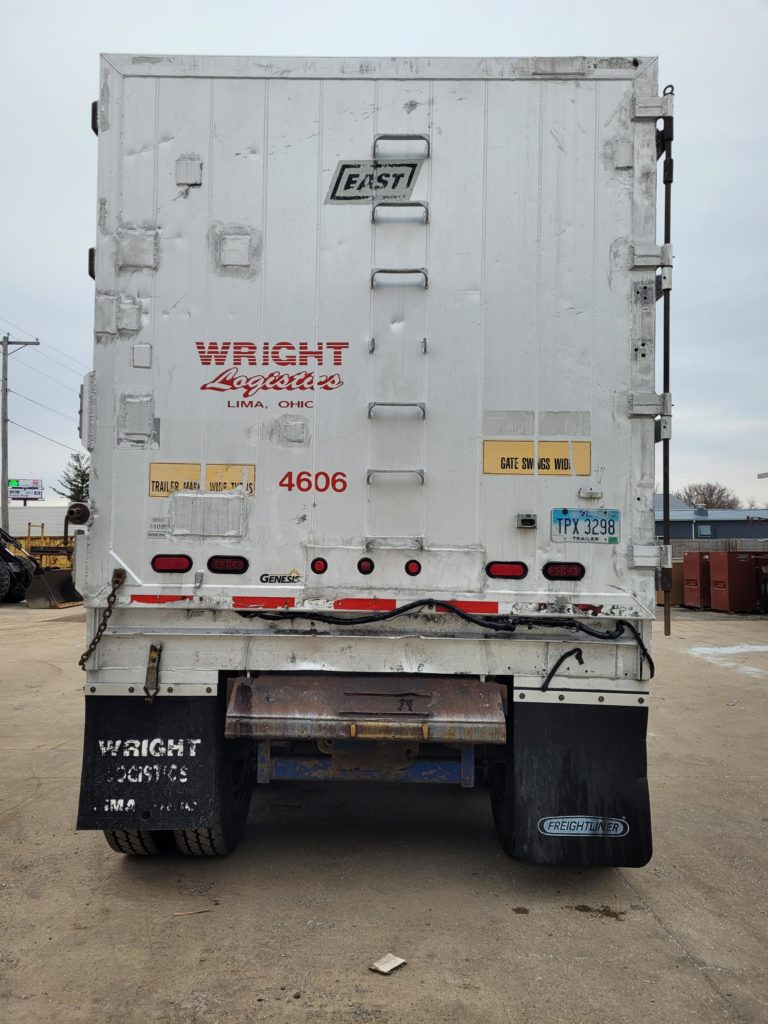

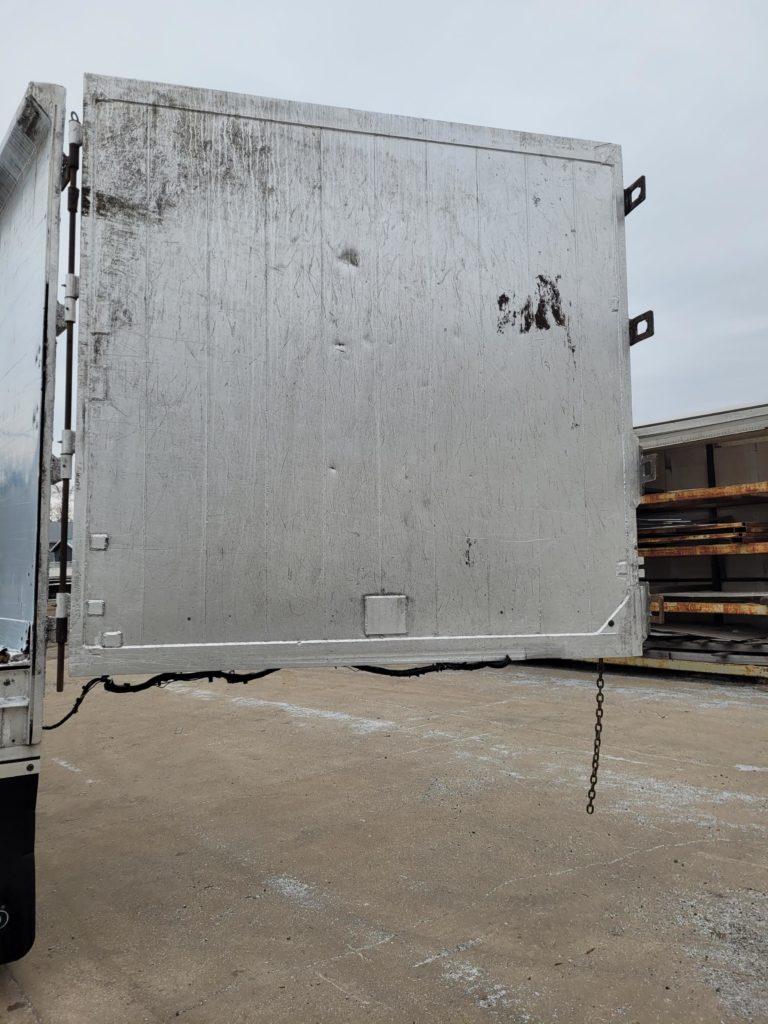

TAILGATE
Height: Full
Type: Single
Style: Genesis
Material Thickness: 0.150
Side Swing Hinge: Passenger side
Gate seal: None
Gate Ladder: Cast / Center
Tarp Hooks: None
Winders: One
Gate Guide: Yes
Gate Control: Mechanical
Pockets: Extruded
Cross pipe: Two
HYDRAULICS
Hoses: Yes
Fittings: Wing Type
HP: 1” Female
LP: 1” Female
Access Panel: Access to Steel Hydraulic lines.
CHASSIS
Model: Tandem
Type: Aluminum Sub Frame
Axle to Axle: 49”
Rear Axle Setting: 26 1/2”
5th Wheel Ht: 49”
Pin Setting: 36”
Suspension: Reyco 21B
Springs: HD Single Leaf
Axles: 5” Round – 5/8” TP
Brakes: 16 ½” x 7”
Dust Shields: Yes
Brake Chambers: Top of axle
ABS: 4S/2M
Hubs: 10 S AL / LWBD-PIL – East Elite
Wheels: 8.25 x 22.5 Aluminum Mill Disc

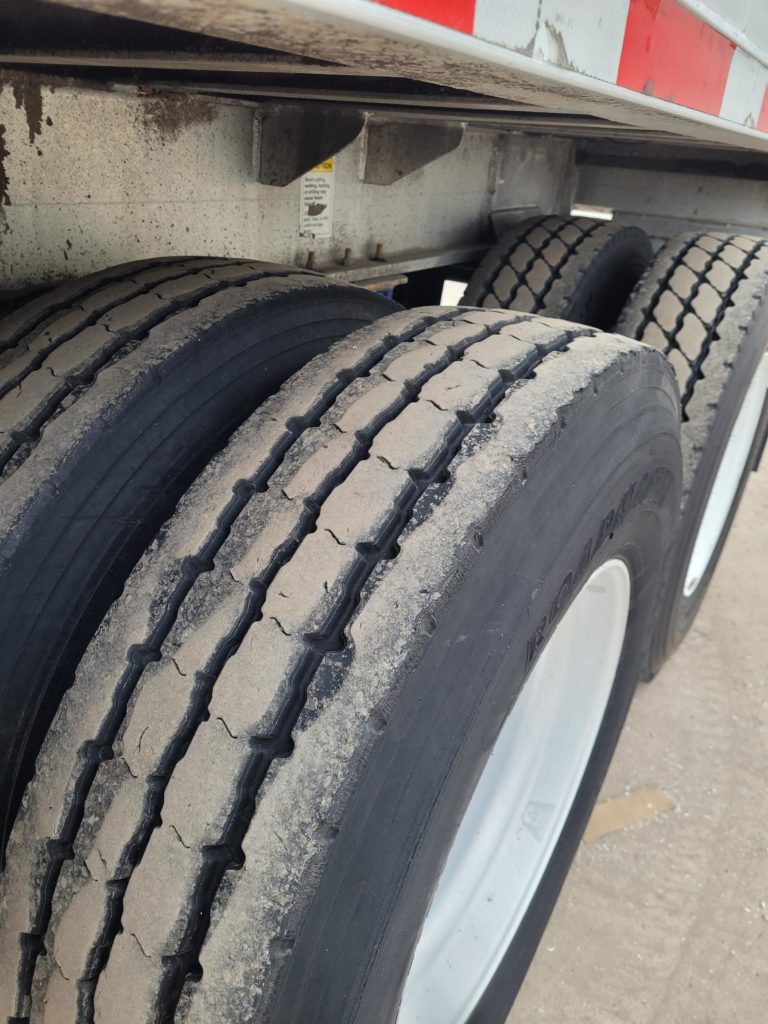

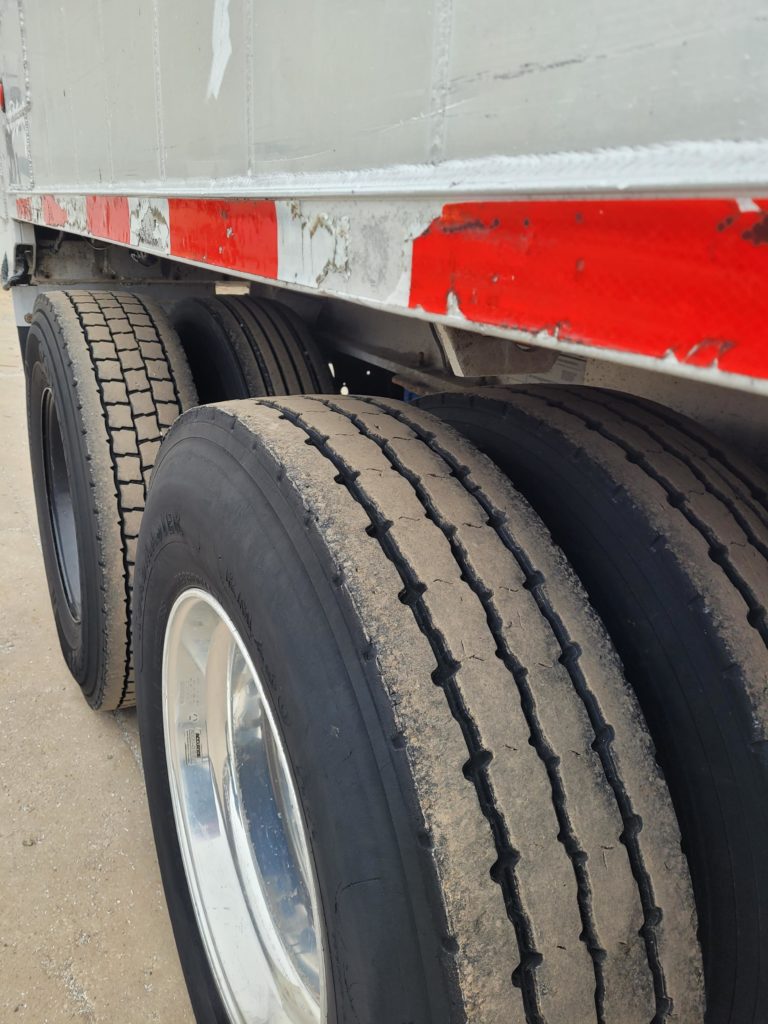

Tires: 11R x 22.5”
Dollies: 2 Speed Mark V
Location: Driverside Crank
Bumper: Tubular
Tow Hooks: Two
Push Blocks: Yes
Weight: 18,010 lbs
Volume: 125 cu yds
Additional Work Completed at KTR
– Check trailer over, prep for sale
– Lower section of bulkhead plated
– Reinforce bulkhead and replace hinge for man door
– Replace hydraulic hoses on front of trailer and connectors
– Replace leaking hydraulic hose under trailer
– Repair standoffs for ladder on front of trailer
– Cut out and repair broken section of crossmember, Overly cracks in other cross members
– Repair and replace lights as needed
– Repair tailgate sides and bottom
– Replace torque arm bushings on front axle
– Replace wear pad in spring hanger and replace cross pipe between hanges
– Replace spring bar
– Patch holes on inside of trailer
– Replace missing mudflap
– Repair bad section of side seal
– Remove 4 dented slats, straighten, and reinstall with new bearings and hardware
