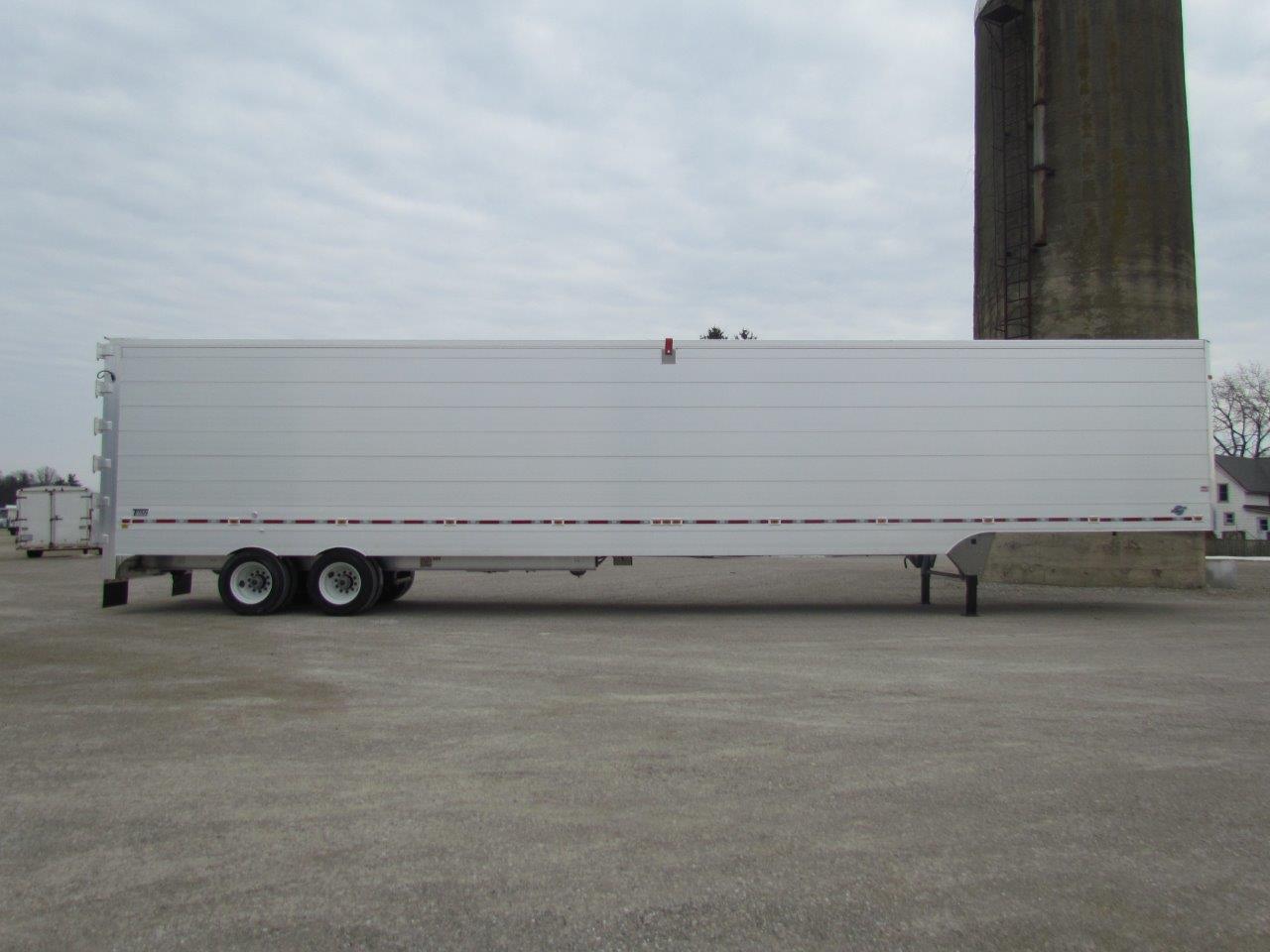

2025 TITAN 53' 2 AXLE WALKING FLOOR DROP FRAME 2 UNITS WO# 7373

Customer Application                         Garbage Application

Base Model                                          53-2-TW-DF-WF-Dropframe OT

Style                                                      Drop style – See Note #3

Wall Configuration

Front                           To suit garbage application – See Note #2

Sides                           To suit garbage application

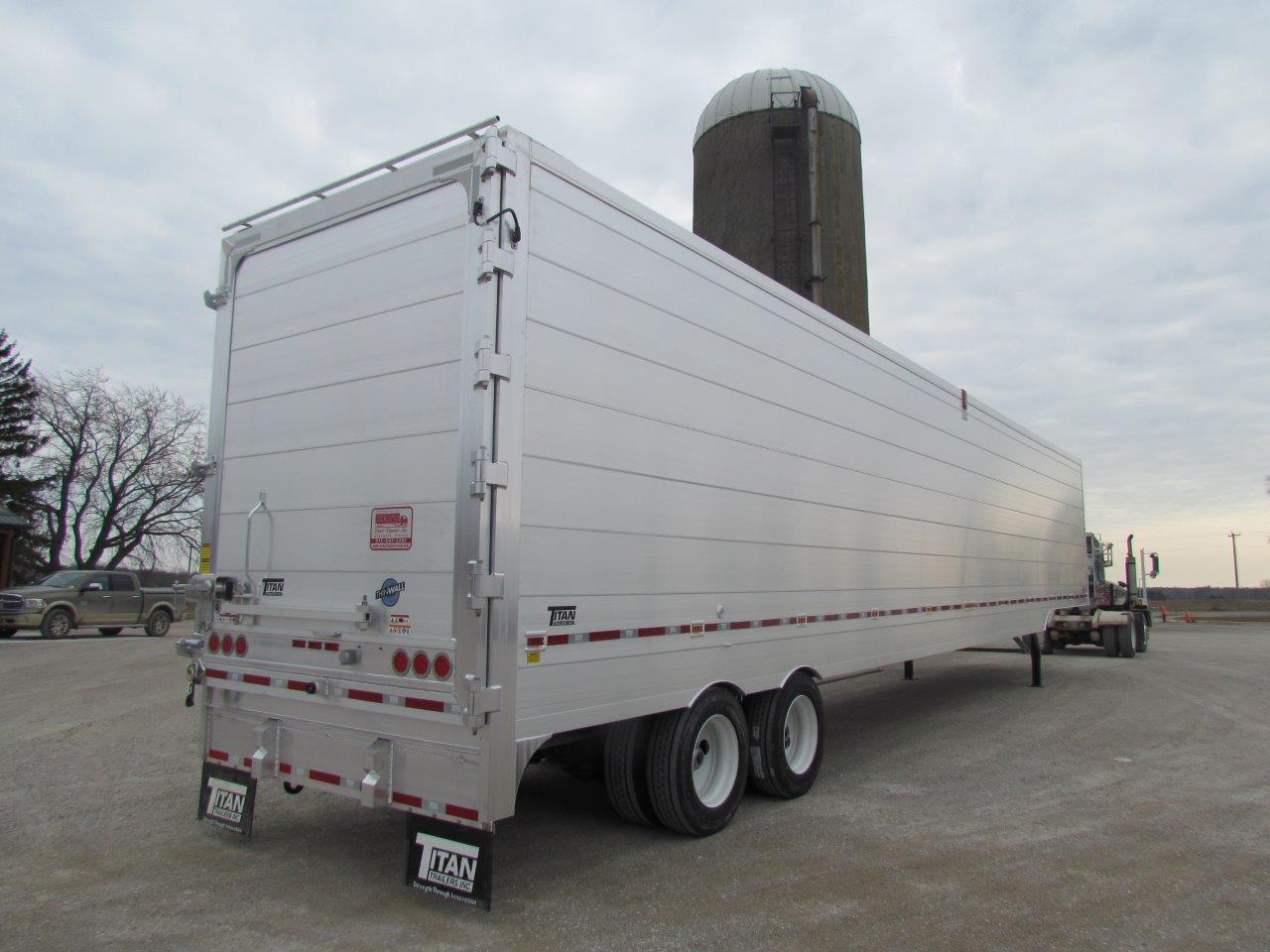

Rear Door                   SDSWG, Door in Door, Air Release, Lights in Door, Compactor posts, with reinforced bottom lock finger – See Note #5

Overall Length                                53 ft

Overall Width                                102” nominal

Overall Height                              13’ 3 3/4”  (159.75”) approx.

King Pin Location                        36” WELD IN

Upper Coupler                              5/16” THK Steel– Set @ 49” high

Number of Axles

Primary                                              Two (2)

Lift                           None (0)

Axles                                                   Intraax-Straight Spindle

Axle Track                                          77.5”

Suspension                                          Intraax AAL 25K

Location of Spreads                            see axle layout

Hub/Drum Assembly                        10 Stud Dura-Light-Hub / Centrifuse Drum

Disc Wheel Size                                  8.25 x 22.5

Rims                                                    STEEL Standard duty prepainted white

Tires                Brand                          Goodyear

Size                             275/70R22.5 – 38.0 dia

Tread                           Endurance RSA

Ply                               18

Quantity                      8

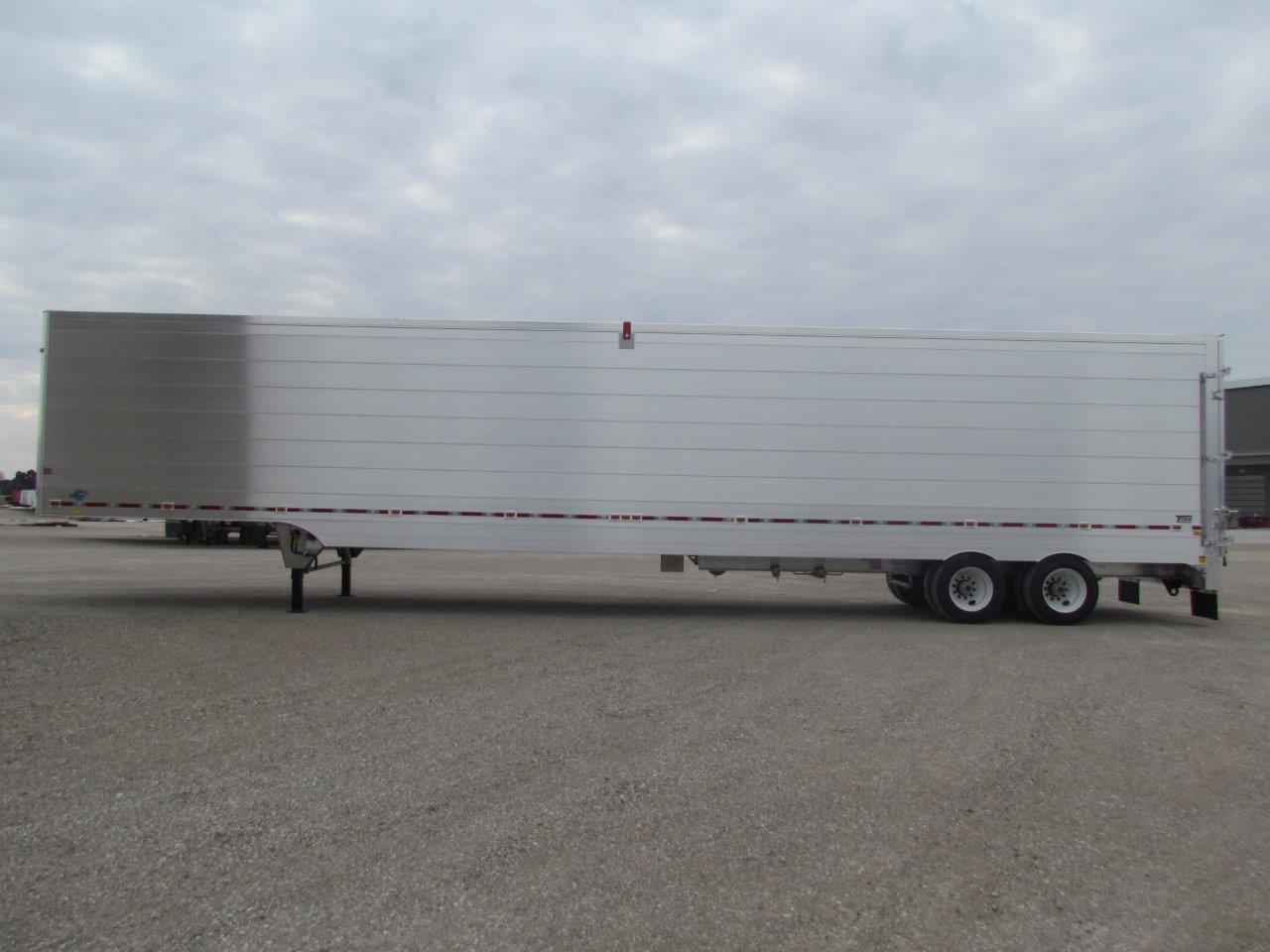

Axle Layout                                        FRONT-Primary-50-Primary-84-REAR

Oil Seals                                              To suit axles

Lubricants                                           Oil 80W-90

Brakes             ABS                            2S/2M Meritor Wabco – See Note #1

Slack adj.                    Haldex Auto – See Note #1

Cam Enclos                 All axles & c/w Dust Shields – See Note #1

Lift Kits                                              None

Lift Controls                                       None

Frame Width                                       48”

Rear Bumper                                       No bumper required since bottom of lightbar is less than 22” from ground

Option #1                    4 x 4 alum bumper blocks w/ v-notch on bumper uprights

Option #2                    Bolt on Tow Hook, located Roadside

Tire Carrier                                         None

Landing Gear                                      Jost Standard A400 Series: A401-G3 -Low Profice cushion foot

Top Rail                                              Titan Tapered V1

Top Cross Tube (less rear)                  Qty 1 – spring steel (two piece style)

Floor Crossmembers                           12” Centers

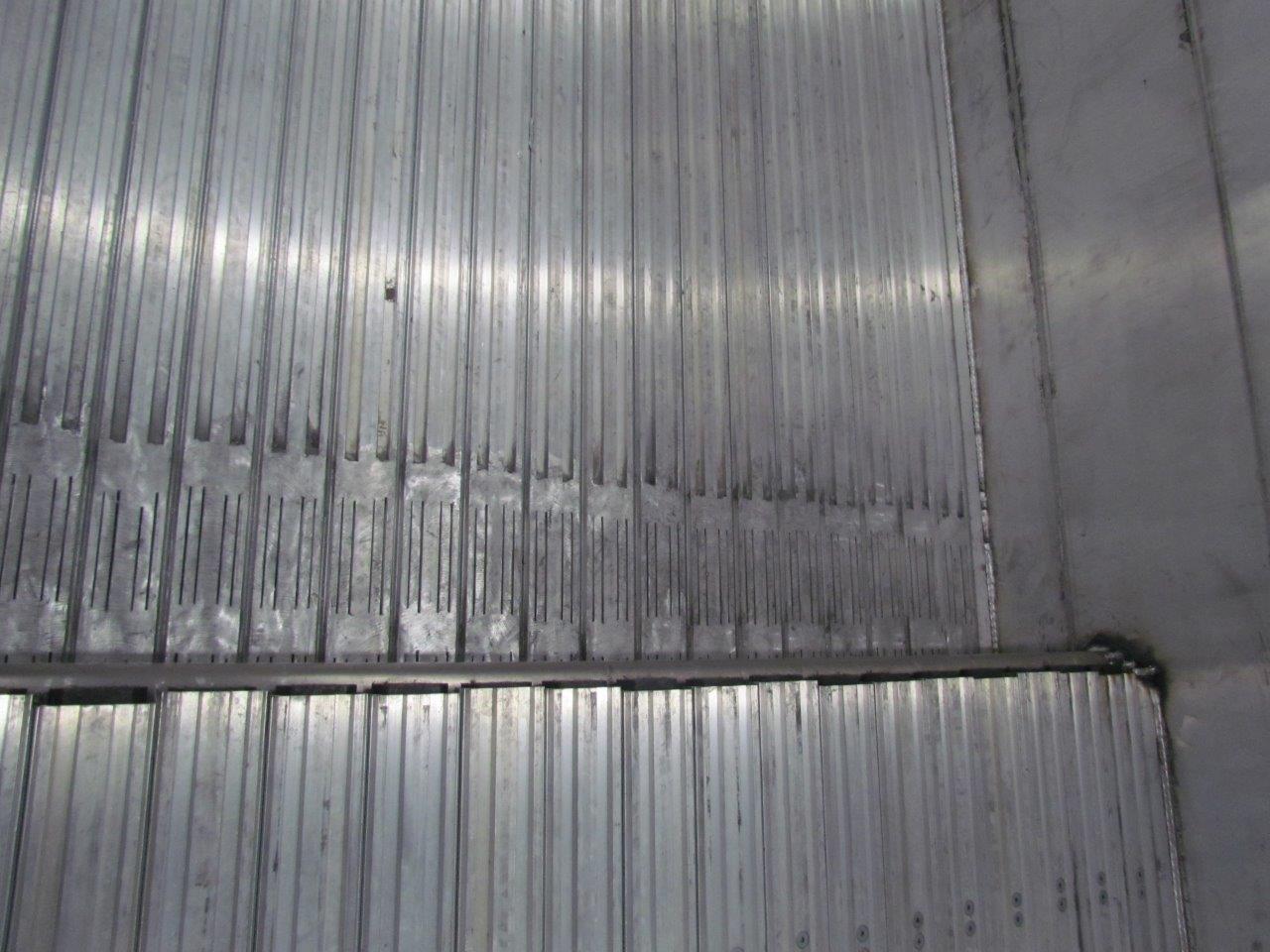

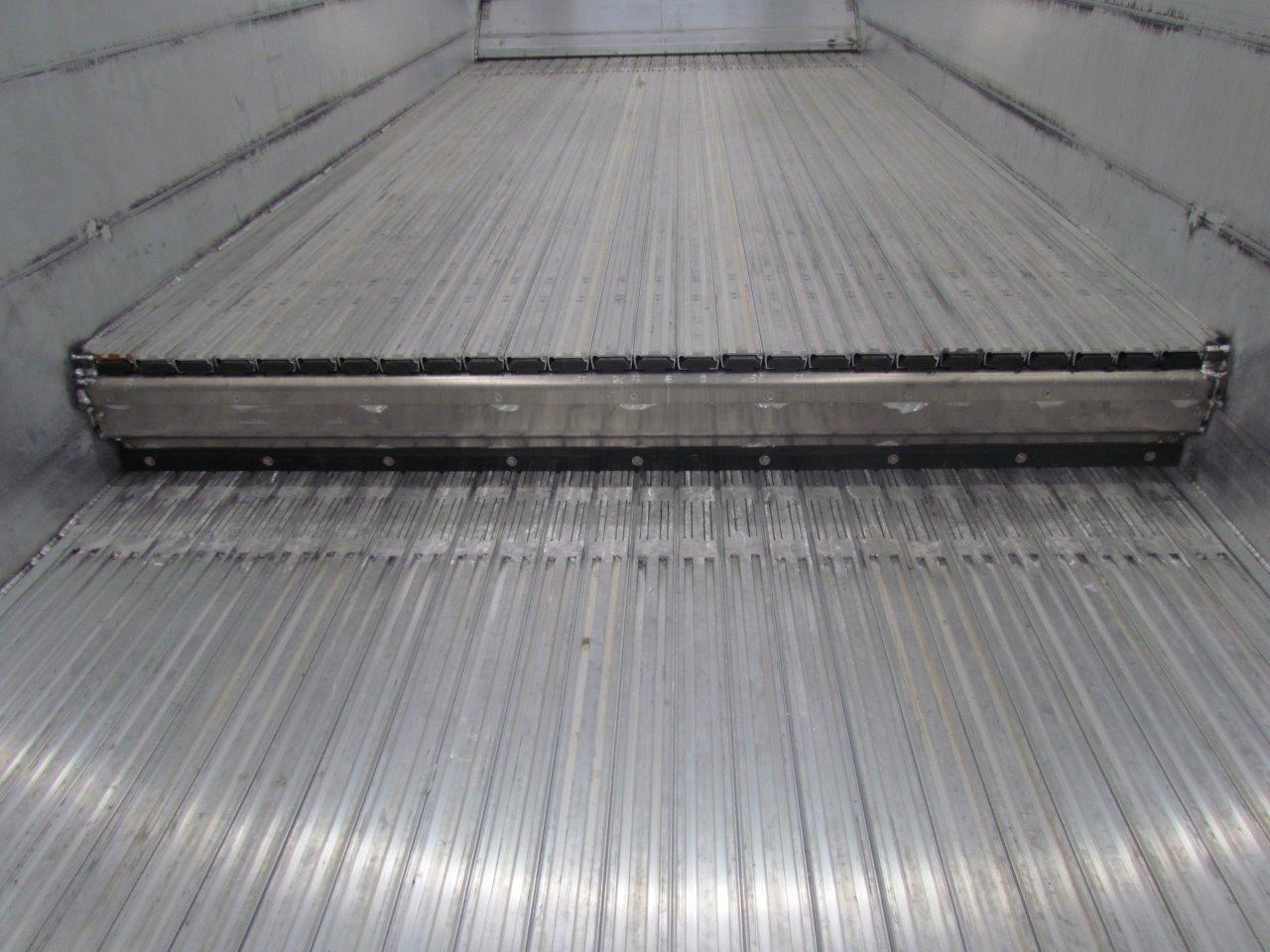

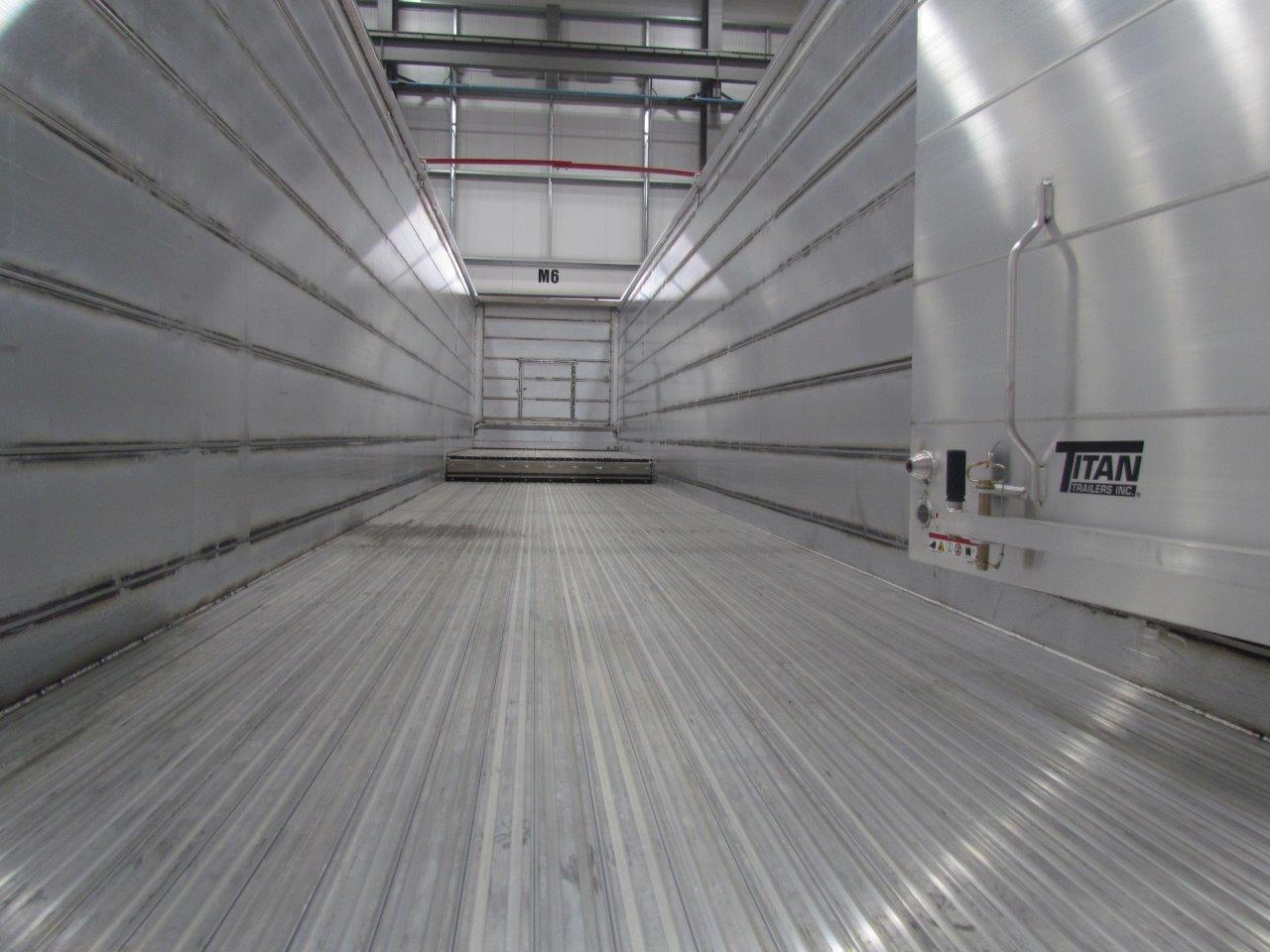

Keith Walking Floor Kit                    Running floor II – 3.5” dia cylinders – 6” stroke

Slat Model & Width                           26 slat: 2299 slats DF 2PC (1/2” Triple Ridge Impact – 3.5” W) 1212 seals – T-blocks Rear at – See Note #3

Slat Wear Strips                                  24” long, Flush, Filler bar wear strips

Continuous Bearing                            Continuous splash/hold down bearings

Side Wall Wear Plates                        Boomerang Style

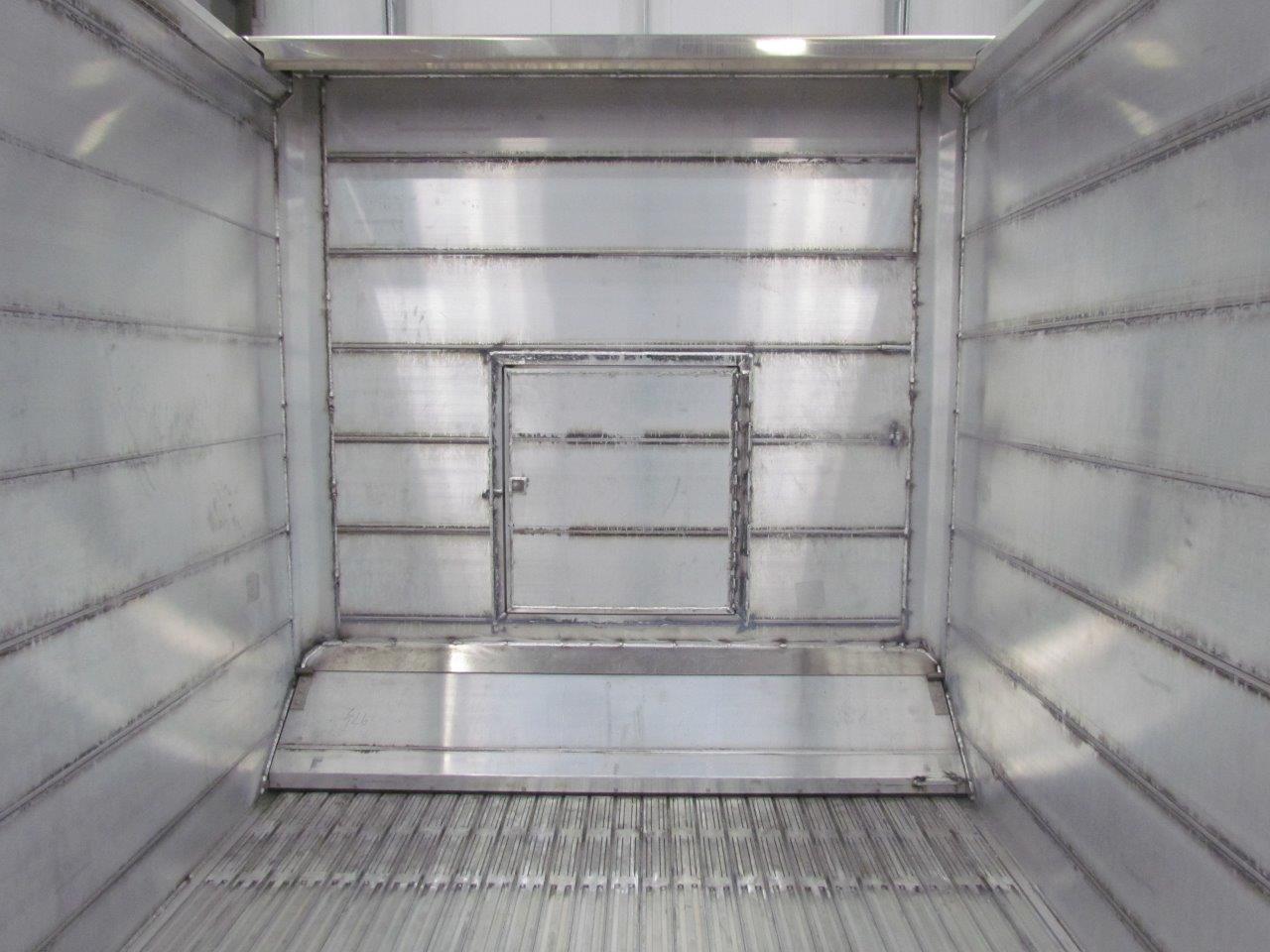

Front Access Door                              STD (35”W x 37.5”H) Curbside hinge with flip step, located center

Tarp Style                                           None – See Note # 7 & 8

Tarp Header                                        Flat – front & rear

Tarp Basket                                         None

Tarp Hooks                                         None

Axle Fender                                        None

Hyd Fitting     Pressure                      1” – Quick coupler – Male – See Note # 10

Return                         1” – Quick coupler – Female – See Note # 10

Mud Flaps       Style                            Titan Black Rubber

Location                      (2) at rear (attached to light bar)

Mud Flap – Landing Gear                  None

Paint                Body – Color              Natural Aluminum

Run – Gear                  Titan Black

Hub / Drum                 Same as Running Gear

Rims or Disc               Pre-painted white

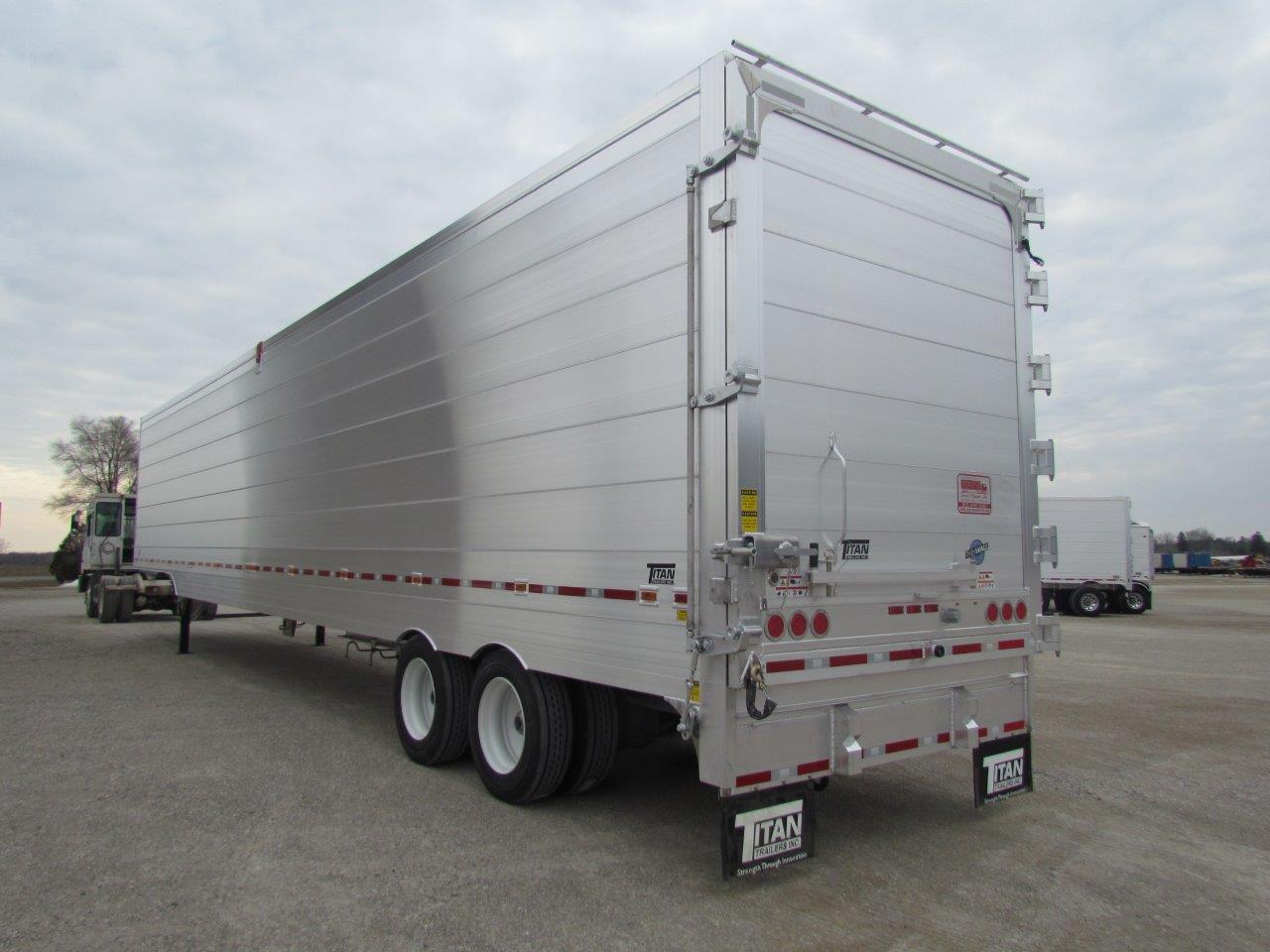

Light package (Plug Form)                 Front: (1) mkr per corner mitre. Sides: (2) mkrs (includes

midturn) Rear: (2) mkrs at top (3) 4” round red taillights per side

in door, with center cluster of (3) mkrs in door

Add Sidewall Lights                           Add (9) mkrs lights per side, for a total of (11) bottom

Access              Catwalk                       None

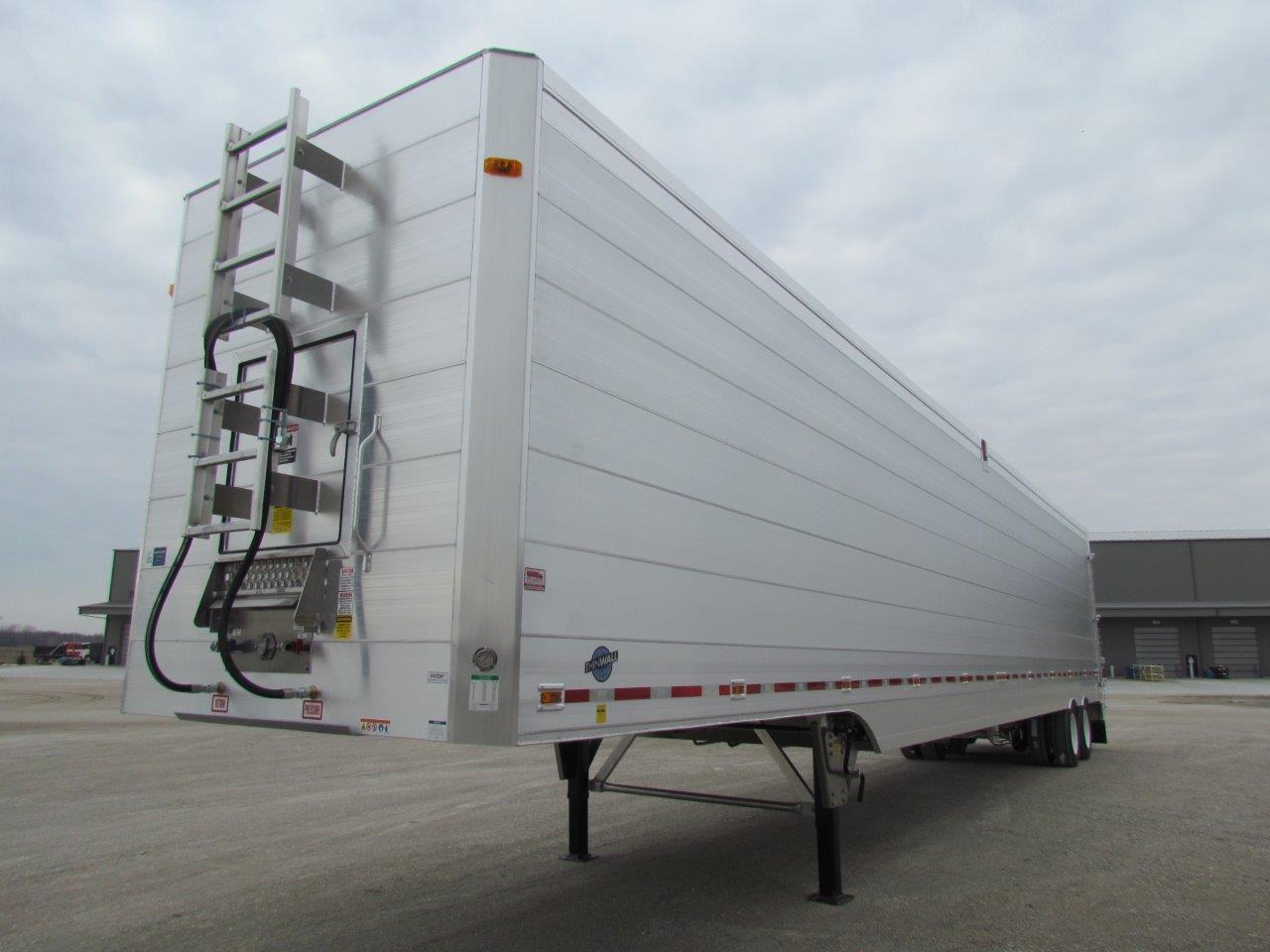

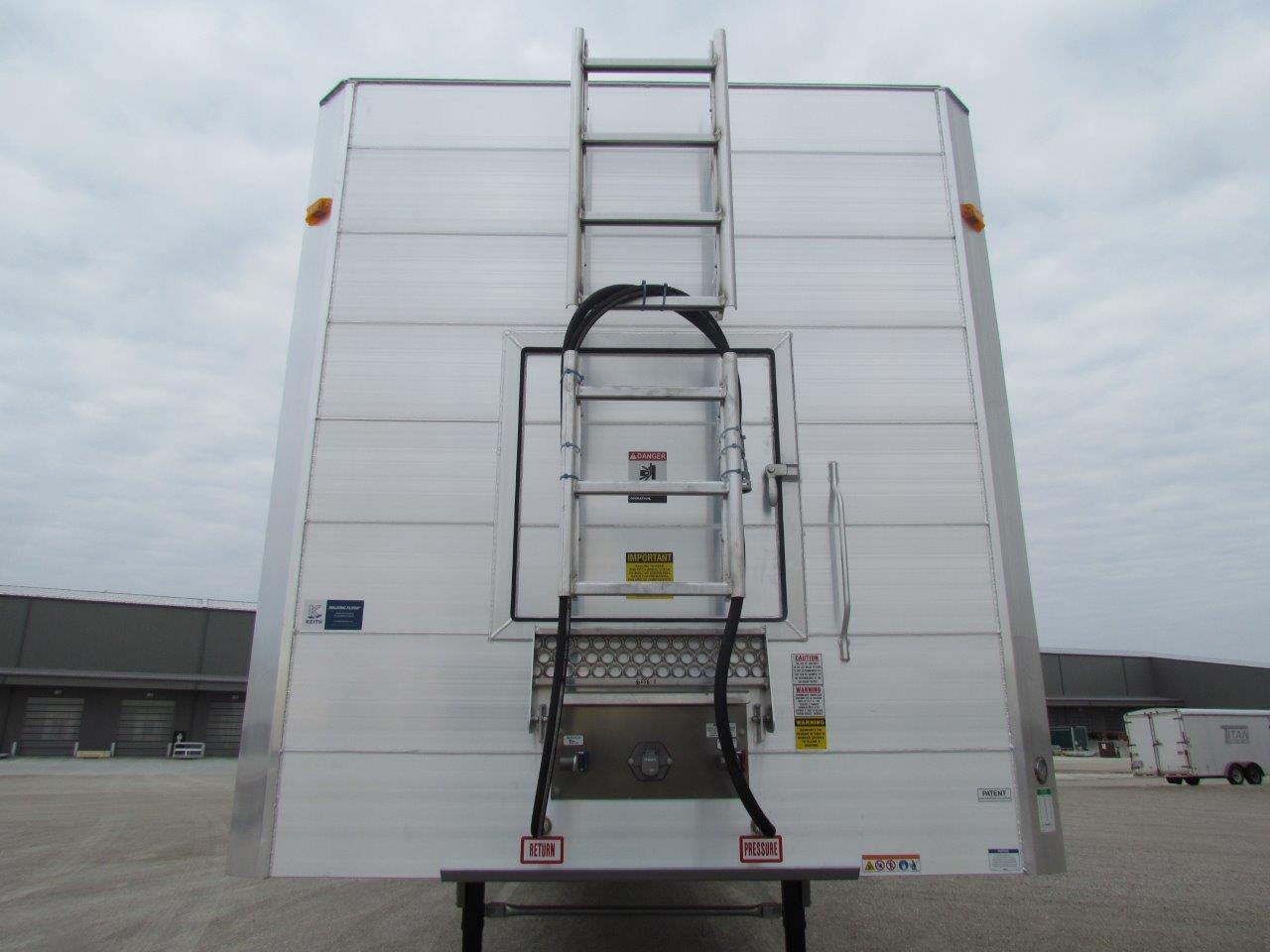

J-Ladder Front            2 pc ladder middle of front wall with (1) PC on access door & (1) PC above it, with 10” standoffs

J-Ladder Rear             None

Steps-Front – Out        None

Steps-Front In             None

Steps-Rear                   None

Additional specifications:

• Long stroke Haldex brake chambers. Suspension plumbed to deflate when brakes are set (auto dump). No trailer mounted dump control. No control box needed.
• Add (1) grab handle, located Roadside of front access door
• Charge to make trailer a drop deck which includes: trailer drop, extra sidewall material, drop floor kit, & 2299 slat upcharge. Trailer floor to have 12 ½” drop.
• Add 2” air pressure gauge to Roadside, front corner mitre at eye level.
• a) Door pusher bar/prop to be installed, attached to rear air door.

1. b) Special cone locks to operate from outside of sidewall.
2. c) Tailgate release control mounted on plate, located roadside, just ahead of subframe.

• License plate mounted in door, Curbside of center markers
• Tarp support rod with standoffs to be added to rear side of top rear header tube.
• Ship Loose: QTY (5) tarp ratchet mounts with protectors to suit Deroche Tarp
• Add 3.5” hydraulic pressure gauge to frame (flush mount), located beside the on/off handle with identifying label
• Add 9’ hoses to front wall
• Add TireMaax Pro Tire Inflation system to all axles

Volume: 149.3 cu yds

Estimated weight, 19,930 lbs +/- 3%
